@ Dog-computer
2017. Own development


Usually Victor 3D considers a computer as the tool for multimedia production. But here was an idea to construct the computer, that will take domestic tasks: home security like a dog, record the TV- and radio under the schedule, signal about undesirable events and another.

This computer should be small and be placed in imperceptible "kennel". So the compact desctop was projected and made. however, it is capable to contain a maximum of hardware. For continuous work the ventilation with direct way of air is stipulated. But reality has shown: the events which should be fulfilled, are rare, and between it the computer stays in sleeping mode.

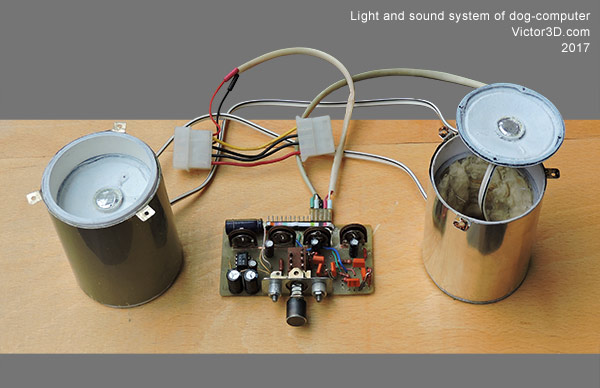

The light and sound sources made under own circuit are built in the desctop. Initially it allocated a role of the signal system, but as it was found out: to listen and watch the music through it is also interestingly. So it was named "Delight".

Toy dog is the external agent of this hardware complex. In her ear the microphone is built. and in his eye is minicamera. THe dog is capable to transfer the video and sound to computer for record, being remote. It has been made to trace the undesirable visitors. Also, it is necessary to recognize, the temptation was to use this dog as the spy in other cases, however never it was done.

Buttons: "Power" and "Reset" - like in every computer, "Delight" - synchronous light and sound

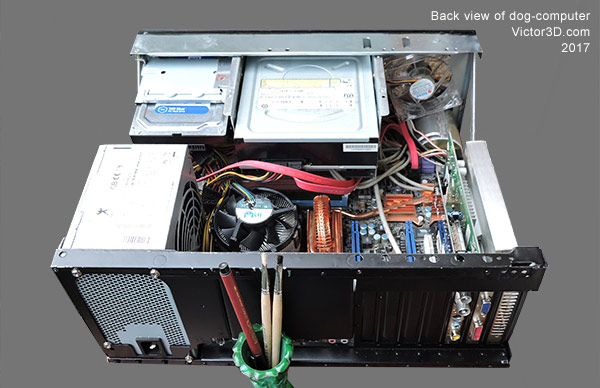

In the compact case: 400 W power block, ATX premium motherboard, media cards, 2 hard disks, DVD-drive, light & sound system, and all this with the optimal ventilation.   Synchronous light and sound system: magnet-isolated speakers as reflectors of the light.
